Population: One Advanced Rules Editor

Updated

Table of Contents

  1. Overview
  2. How to Access the Advanced Editor
  3. Main Tabs
    • Events
    • Variables
    • Roles
    • Buffs
  4. Events in Detail
  5. Variables in Detail
  6. Roles in Detail
  7. Buffs in Detail
  8. Examples & Tutorials
  9. Tips and Tricks
  10. Appendix

Overview

The advanced rules editor is a tool for defining custom game modes in Population: One Sandbox.  It is not a full visual programming interface, but it does utilize some basic programming concepts, such as functions, if/else blocks, and variables.  Utilizing the example maps BigBox has provided, it should be possible to learn and work in the tool without any prior programming experience.

--------------------------------------------------------

How to Access the Advanced Editor

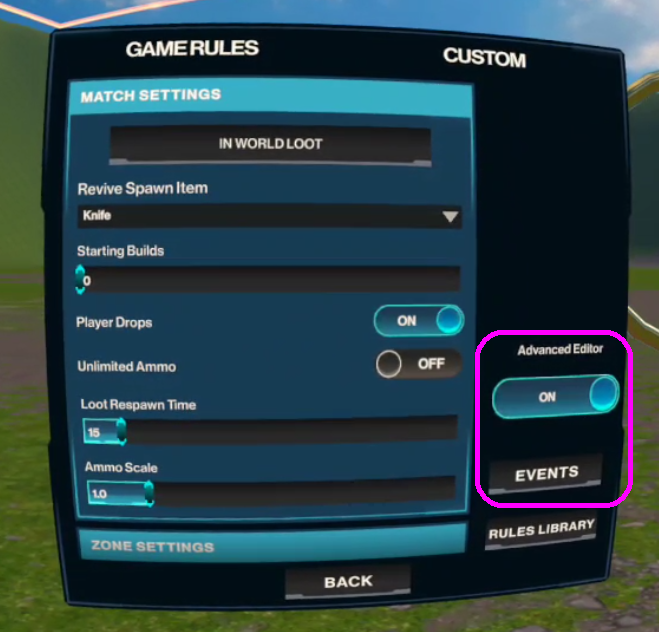

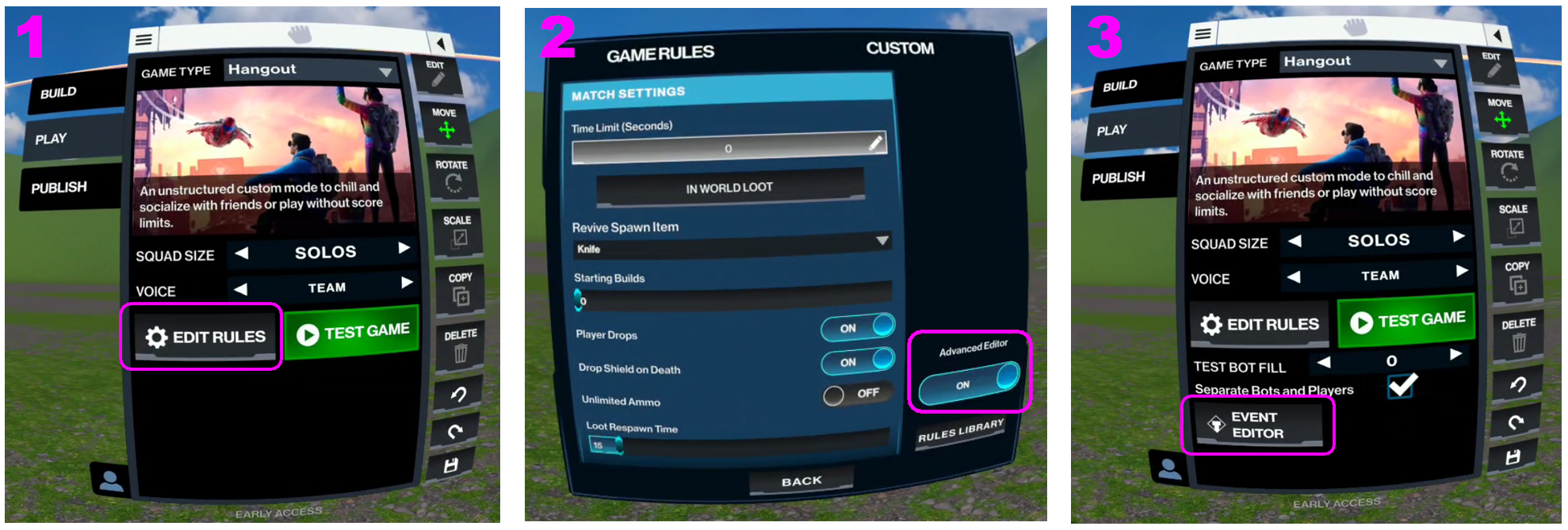

In Sandbox builder mode, select Edit Rules on the Play tab.  On the Custom Rules edit panel, there is a toggle for enabling advanced mode.  When that is ON, the "Event Editor" button appears on the Play tab and will take you to the Advanced Editor.

You also now have the ability to save and load rulesets using the Rules Library.  This allows you to transfer rules between maps easily, which is a good way to apply an example game’s rules to your map.

--------------------------------------------------------

Main Tabs

Events

Events are the heart of the rules system and define everything that will happen in your game.  Each event has a trigger type, i.e. OnKillEnemy, which defines when it happens..  Events use a system of selecting an object (or objects) to operate on, such as players, and then running a set of actions for the selected object(s).  They support some simple script-like concepts such as conditions with else cases, and functions, which are just events that use a function trigger type.

Variables

This tab is where you can define variables, which allow you to store values you might need to retrieve later. Variables can be numbers, objects (such as players), or lists of objects. There are many predefined variables that the editor provides  access to, but you may find you need to track other things in your game, and defining variables is how you would do that.

Roles

Roles are ways of changing the stats/behaviors of a player in your game.  For example, if you were making an infected game type, you could define a Zombie role and a Survivor role, and then assign them to players on match setup and as Survivors are killed.

Buffs

Buffs are temporary or permanent boosts to a player’s stats and abilities.  There is some overlap with roles, but the usage is different. For example, you could define a buff that gives a 30% speed boost for 30 seconds, and award that on kill to give players a bit of momentum.

--------------------------------------------------------

Events in Detail

Triggers

Triggers define when your event is going to happen.  Each trigger can contain objects and variables you can reference in your actions and conditions, such as a player who caused the trigger to happen, or an item ID of a loot that was collected.  Variables from a trigger will be available under Event in the variable source selection field.  Some triggers also include a location of where the triggering action happened.  Some triggers, like OnMatchSetup would contain none of these things.  The actions available in an event will vary depending on the properties of the trigger.  Current list of triggers can be found in the appendix section.

Selection

Selection is how you decide what objects are going to be affected by your actions inside of an event.  Some selections allow you to select multiple objects (for example, AllPlayers), which will run your actions for each one in a loop.  You can also add new Action Groups in the action section of your event to allow you to change the selection and run some actions on a different object.  The available actions inside your event will change based on your current selection.  Available selection options are detailed in the appendix.

Conditions

Conditions allow you to enter checks that must be passed before actions will be run.  Each condition consists of two expressions, and a comparator.  You can group multiple conditions together by indenting all but the first one you would like in a group.  For example, if you had a complicated condition where you wanted something to happen if (A and B) or (C and D) was true, you would do this by indenting condition B and D.


Comparisons of both numeric values and object values are supported.  When checking an object value, you can compare it to null, which is available under the global variables, to check if the value is not set.

Actions

Actions are how you can make things happen in the game. The actions you will have available to you will depend on the currently selected object. The available actions are detailed in the appendix.

Action Groups

An Action Group allows you to change your Selection, and add new conditions around some actions inside of an event. An example of this is when setting up a match, you might want to add all control points to a list, sort that list, and then activate one control point. You could accomplish this by having multiple MatchSetup events with different Selection types (All Control Points, None, Range From List), which will execute from top to bottom in your event list, or you can put them all in one event using None as your first selection, and adding an All Control Points action group, and a Range From List action group.  Both methods are viable, but Action Groups can be a nice way to organize your actions into one view.  They can be collapsed and labeled with a comment to help keep the view clean as your events become more complicated.

Expressions

An Expression is a concept that can be evaluated to either a numerical value, or a specific object.  You will come across the Expression Editor in all Conditions (they all compare one Expression to another), as well as some Actions and Selections.  The format in all cases is the same.  The types of expressions you can use are as follows:

  • Value: Allows you to specify a specific number.
  • Variable: Allows you to access the value stored in a variable.  You can select the source of your variable between the currently selected object, the event’s source object, or target object, if they are available.  You can also select global variables, and when applicable, event variables.
  • Mathematical Operations: There are several choices here to do operations between variables and values or other variables. For example, Variable Op Value allows you to do an operation between a variable and a constant value (i.e. player.score - 2)

--------------------------------------------------------

Variables in Detail

General

Variables provide a way to store and access values.  You can define new variables on the Variables tab of the Advanced Editor.  There are many predefined properties you can access as variables in Expressions, along with variables you define yourself.  You can only modify values of user defined variables with the SetVariable and AddVariable actions.

Scope

Each variable has a scope associated with it, which defines who owns a variable. Variable names will be shown color coded according to their scope.

  • Player variables are blue.  Each player in the game gets a copy of each player variable.  This means you can only check and modify the value of a player variable when you have a player selected.  The value is stored per player, so you can set and get independent values depending on the selected player.
  • Team variables are green.  Each team in the game gets a copy of each team variable.  If you set a team variable with one player selected, and get it with another player selected on the same team, you would retrieve the value you set with the first player.
  • Global variables are red.  Global means there is one version of the variable for the entire game.  If you modify the value, that variable is changed regardless of what the selected object is when you check the value.

Type

Variables can be one of 3 types:

  • Numbers store an integer value (whole numbers, no decimals)
  • Objects store a reference to an object in the game.  Currently supported object types are Players and Control Points.  Objects can be selected from variables with the ObjectFromVariable selection.  You will also see the Object option in expressions as one of the properties of object variables.  This can be selected to do an object comparison, i.e. check if one object variable is the same object as another, or it is Null. Null can be found under global variables when comparing an object value.
  • Object Lists can store a collection of objects (Players or Control Points).  These lists can be sorted, and elements can be accessed with the ObjectsFromList and RangeFromList selectors.  List variables have a List property that will show up in the Expression Editor.  This can be selected when you want to do a list comparison operation, such as Contains or Does Not Contain an object.

--------------------------------------------------------

Roles in Detail

General

Roles are how you can differentiate players in a game.  The common example would be in an infected game type, some players might be Zombies, and others would be Survivors.  Roles allow you to override default stats such as health, armor, movement speed, and other player properties.

Avatar

With the avatar selection, you can force a role to use specific skins.  In general, you should avoid doing this for most players, as they will want to wear the skin they have selected, but there may be reasons to do this for certain special roles in your game type.  Checking the Fallback box next to the avatar will mean that this skin is only used if the skin the player is wearing is in use by another role in your game, to avoid confusion with the special skin.

Perks

Perks are a series of checkboxes you can toggle on for your role.  They offer some game changing properties, such as locking a role’s inventory, so they can not drop or pick up items, the ability to see the player’s outline and minimap waypoint for enemies, and others.

Gear

Gear allows you to specify the starting equipment of a role.  When a player changes role, via the set role command, their inventory will be cleared, and set to the gear in the role.  When specifying a gun, the count value in the gear entry is the ammo they will start with.

--------------------------------------------------------

Buffs in Detail

General

Buffs are player-focused stat modifiers that can be applied when specific gameplay events are triggered. They can be permanent, meaning they last for the entire match, or on a timer of a set duration. Buffs can also be stackable, meaning if the same buff is applied to a player multiple times, the value of the modifier that the buff sets can be updated with each level. There is a static list of buffs in Game Rules data that are available in any mode, and any buffs created through the advanced rules editor will be available in that specific mode. Buffs can be applied to players by game actions defined on the Events tab of the advanced rules editor using the ApplyBuff action.

Name

This is the name that will appear on the dropdown of available buffs to select on the ApplyBuff action on the Events tab of the advanced rules editor.

Duration

The Duration of a buff defines how many seconds the buff will last before expiring. If this value is set to 0 or a negative number, the buff will be permanent, meaning it will remain in effect until the end of the match.

Max Stack Count

This value defines how many times the buff can stack. The default value is 1, meaning the buff is only ever applied or refreshed as-is. If this value is greater than 1, then there will be multiple value fields present for each buff effect. When the player earns an additional stack of the buff, the value of the effect will be bumped up to the next value in that list. In the case of timed buffs, having the buff re-applied will increment the value and refresh the buff timer.

Permanent

If this toggle is enabled, the buff will have no duration, and will persist for the entire match after it is applied once.

Exclusive

If this toggle is enabled, the buff will remove any other currently active buffs from the player when it is applied. It will also prevent other buffs from being applied on top of it until it expires. If a buff is permanent and exclusive, there is no way to remove it after it has been applied until the end of the match, unless another exclusive buff is applied to the player to replace it.

Icon

This dropdown pulls entries from a static list of buff icons in the game rules data. The option selected will reflect the buff on the in-game UI on the player’s HUD, displayed over the timer. A preview of what the in-game buff UI will look like can be found on the top-right section of the buffs tab.

Icon Color

You can enter a hex color here to tint the icon of the buff UI. The default is white.

Background Color

You can enter a hex color here to tint the timer background behind the icon of the buff UI. For permanent buffs, this will be a solid circle. The default is black.

Type

The type of the buff defines the actual buff behavior, e.g. what effects it has on the player to whom the buff was applied. There are several options on this dropdown, and a buff can have multiple types if additional buff effects are added using the button at the bottom of this tab.  See the appendix section for details of the various buff types.

--------------------------------------------------------

Example Tutorials

These tutorials are a great way to get started using and understanding the Advanced Editor. We recommend going through them in order to get a solid foundation that will allow you to start creating your own unique games in Population: One Sandbox.

Example 1: Hello World (Beginner)

This example will show you how to set up a simple trigger to show a message to a player when they walk through it.

Part 1: Displaying a Toast

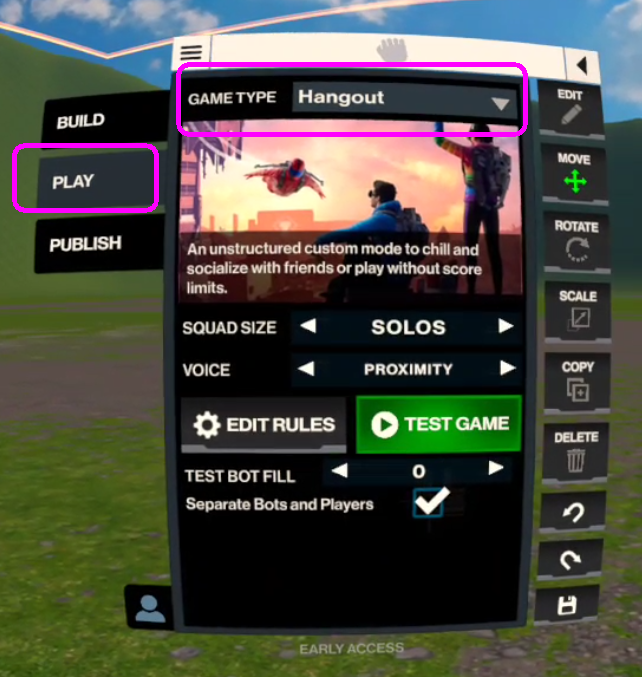

To start, make a new map and set the game type to Hangout.

Hangout Mode gives us a blank slate as it starts with no events defined in the rules.

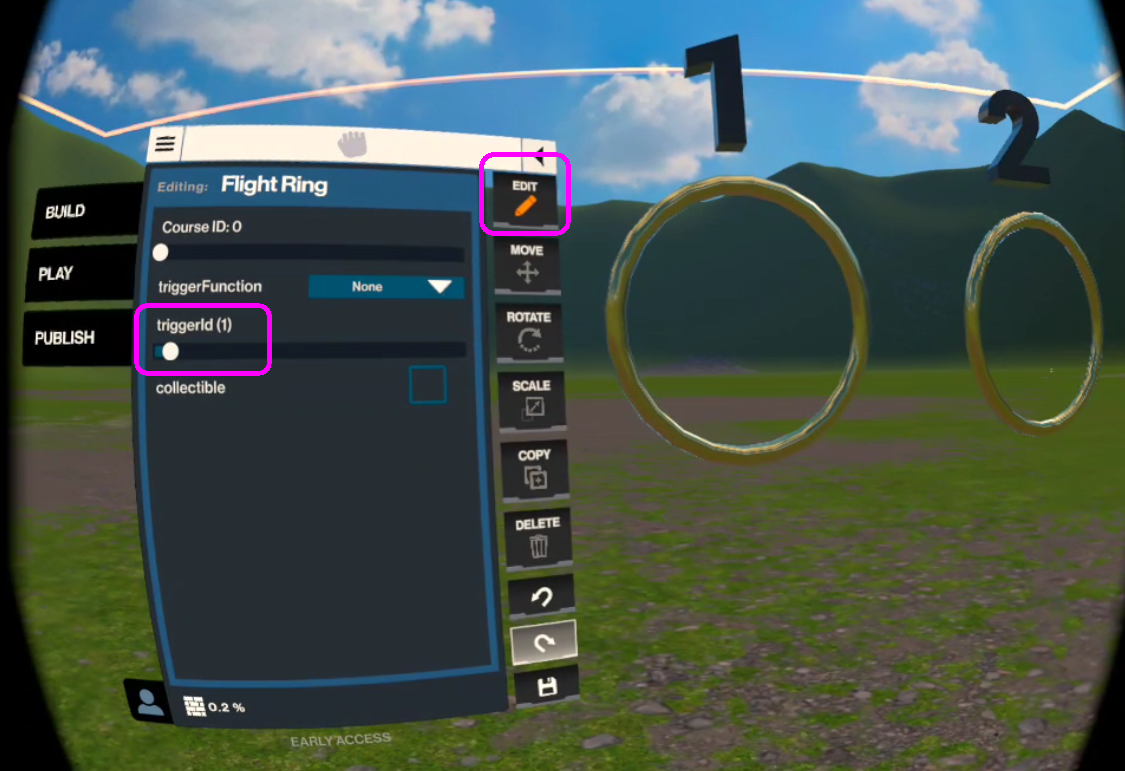

In the scene, place two flight rings. I’ve added a number over them to differentiate them. Select flight ring 1 with the Edit Tool and set the TriggerID to 1 in its properties. Leave the ID for ring 2 set to the default of 0. This will allow us to differentiate between the rings in our events.

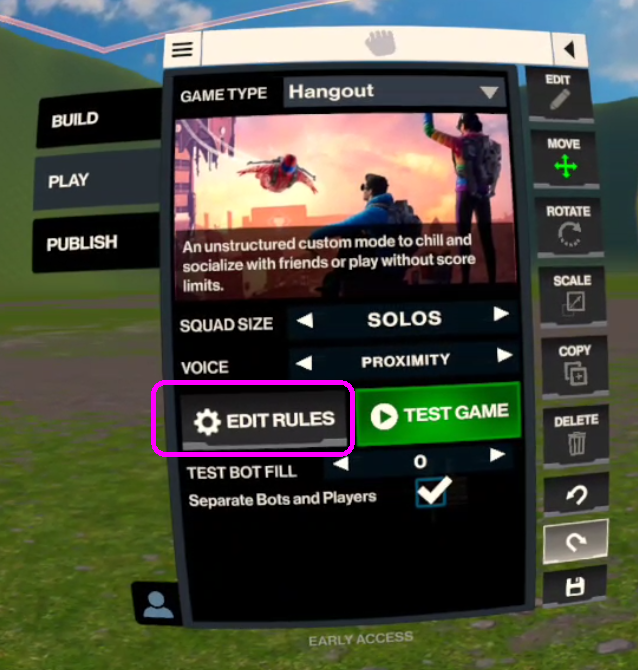

Now, bring up the Advanced Editor by selecting Edit Rules on the sandbox Play tab, enabling the Advanced Editor toggle, and hitting the Events button.

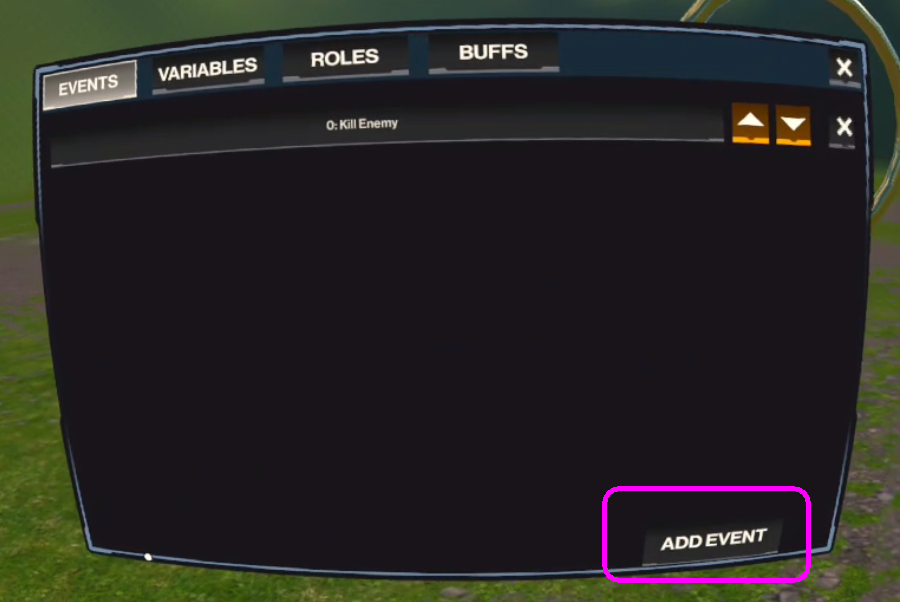

This will bring up the Advanced Editor, with an empty event panel. Press the Add Event button to create an event, and this is what you should see.



Click on the newly created event to open the event edit view.

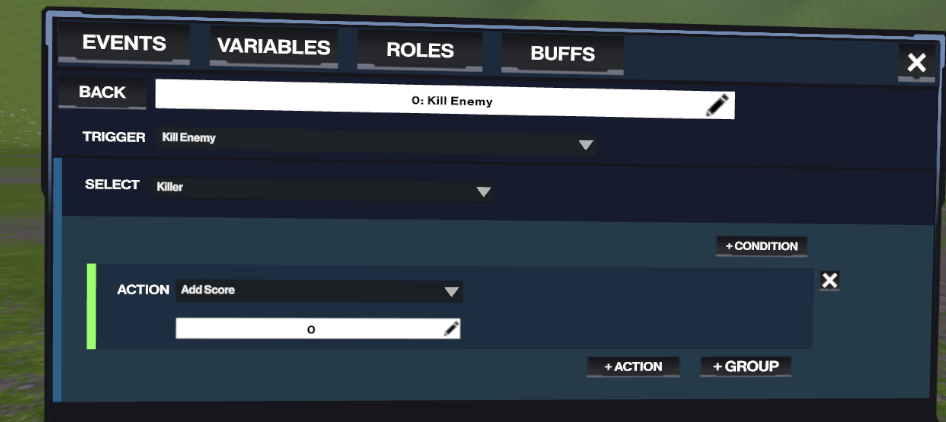

The event will have some default values selected.  This default event would trigger when an enemy is killed.  It selects the killer, and adds 0 to their score.  Not super useful, but we can improve it.



The two things we need to do are:

  1. Change the trigger type from “Kill Enemy” to “Flight Ring Triggered”
  2. Change the Action type from “Add Score” to “Show Toast”.

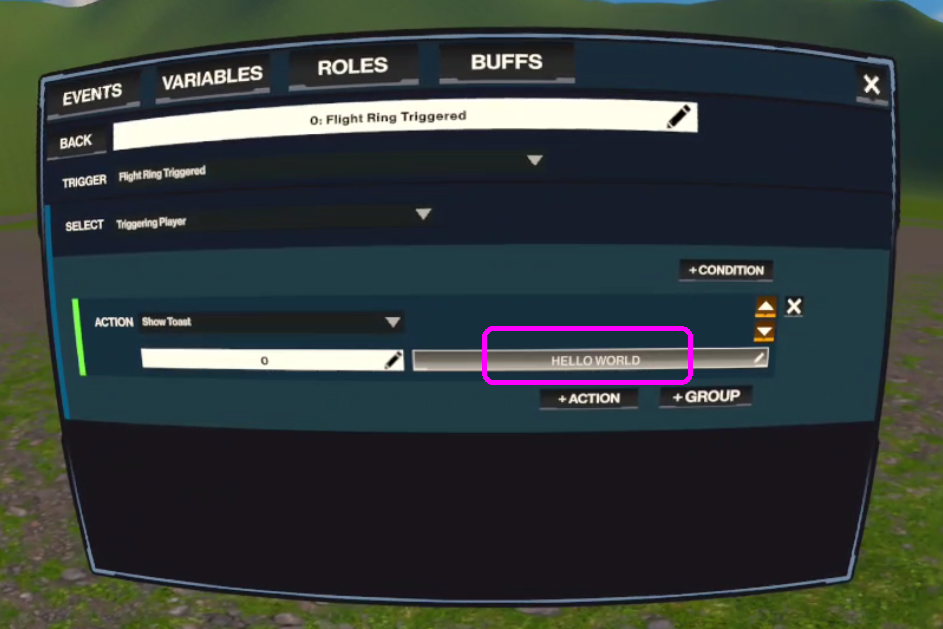

The Show Toast action allows us to enter a message, so enter “Hello World” in the bottom right field. Ignore the bottom left field for now, we’ll come back to that later.



We can now save our map and test our game from the sandbox play panel.

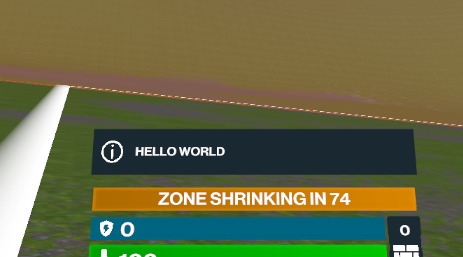

When we walk through either flight ring we will see this message appear:



Now, let’s use the TriggerID to make flight rings 1 and 2 do different things…



Part 2: Conditions

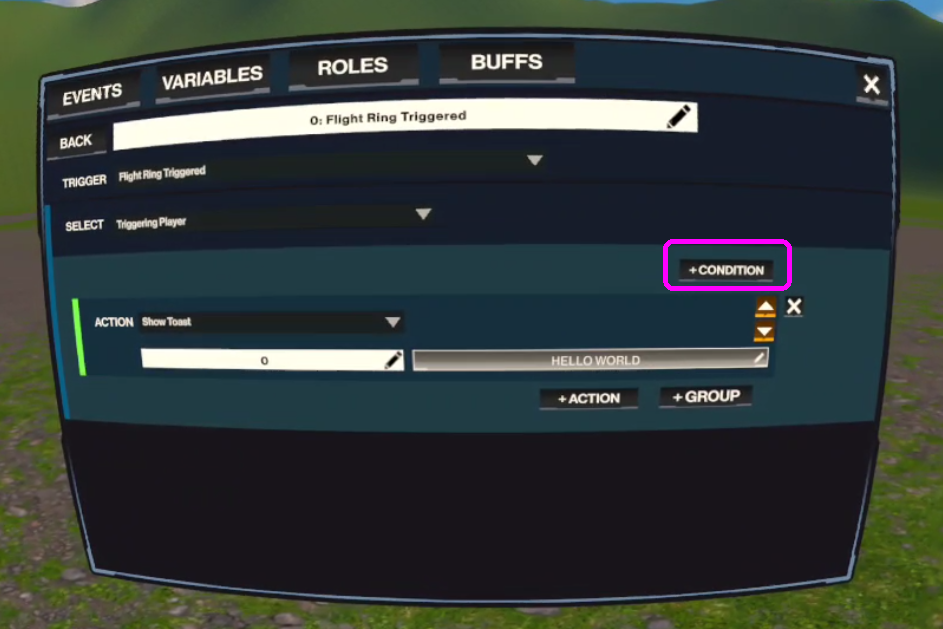

Back in our event, hit the Add Condition button above our Show Toast action to let us add a check before we show this toast.

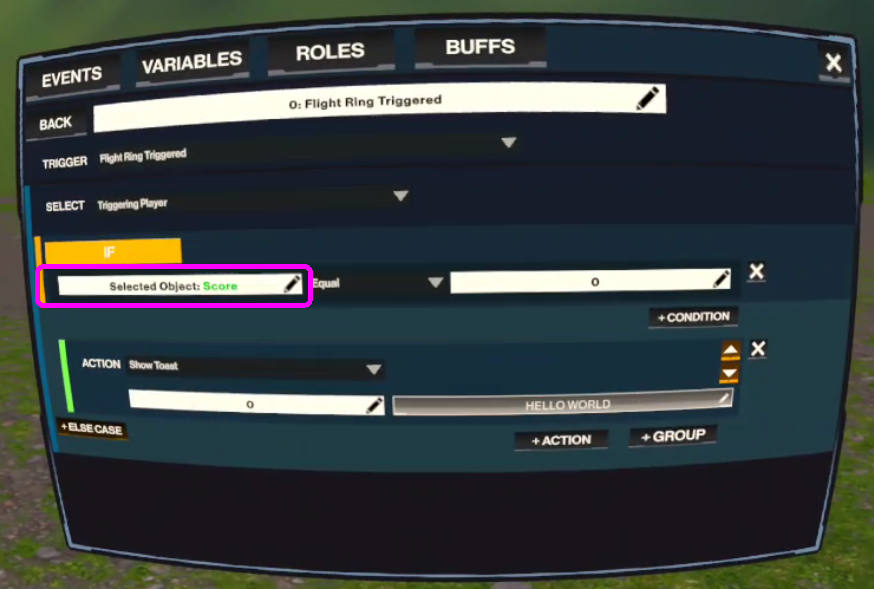

The default condition is not what we want, so select the first field to bring up the expression editor.

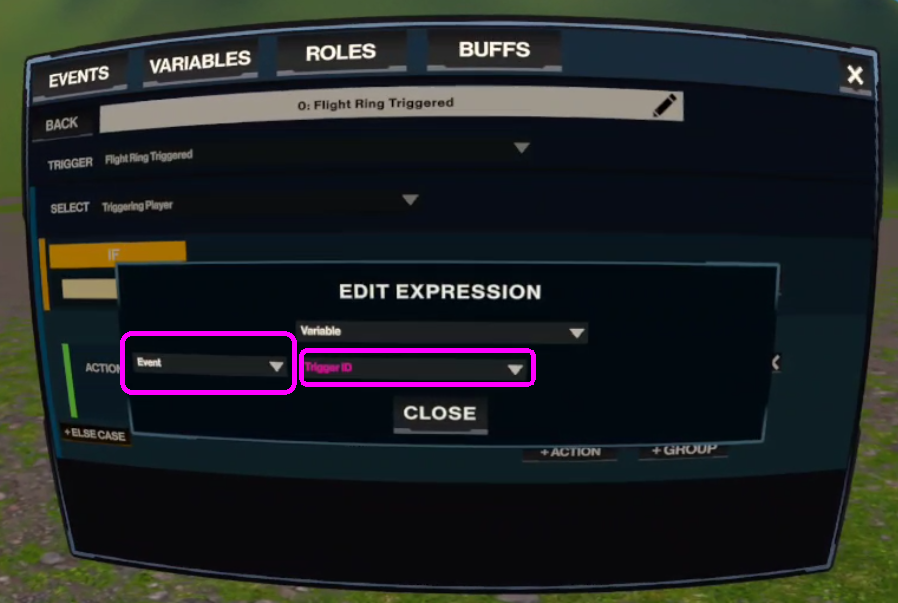

We want to check the TriggerID from the flight ring, which is available under the event selection in the source dropdown on the left.  Once that is selected, close the expression editor.



In our object set up, we set the TriggerID on our first flight ring to 1, so we want to change the comparison value to 1 from the default of 0.

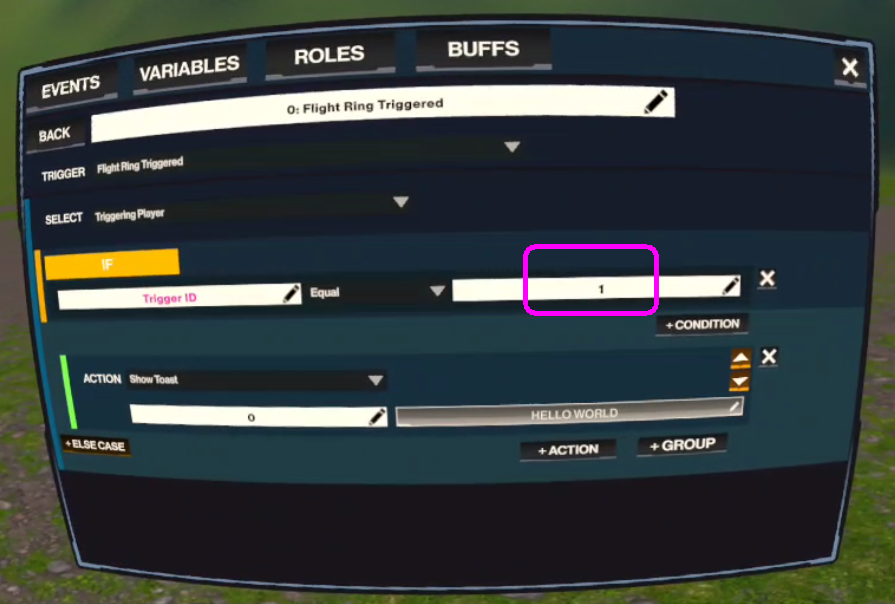

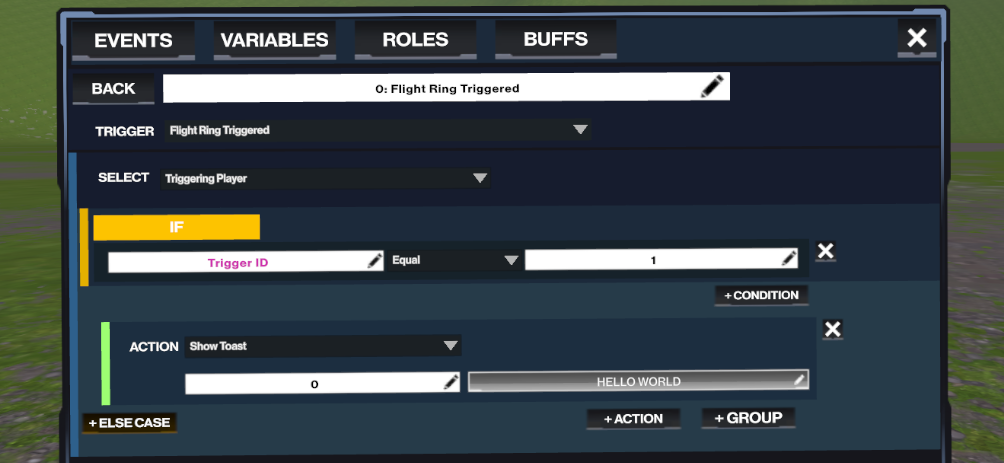

Our final event should look like this.  If we enter play mode again, we will now only see the “Hello World” message when we walk through flight ring 1.



Part 3: Hello User

Now, let’s add a second event to show a different message.  For this example, I’ll show a different way to trigger an event from a flight ring.

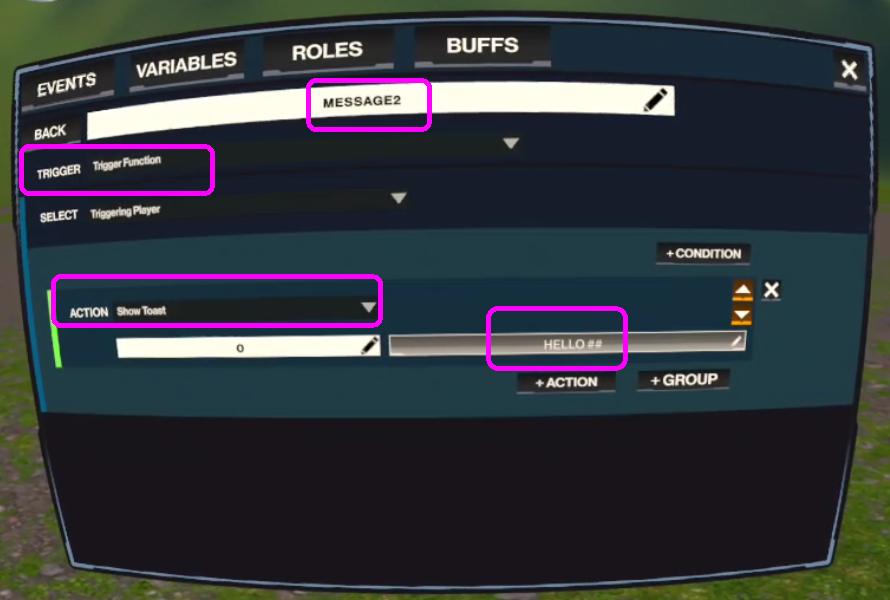

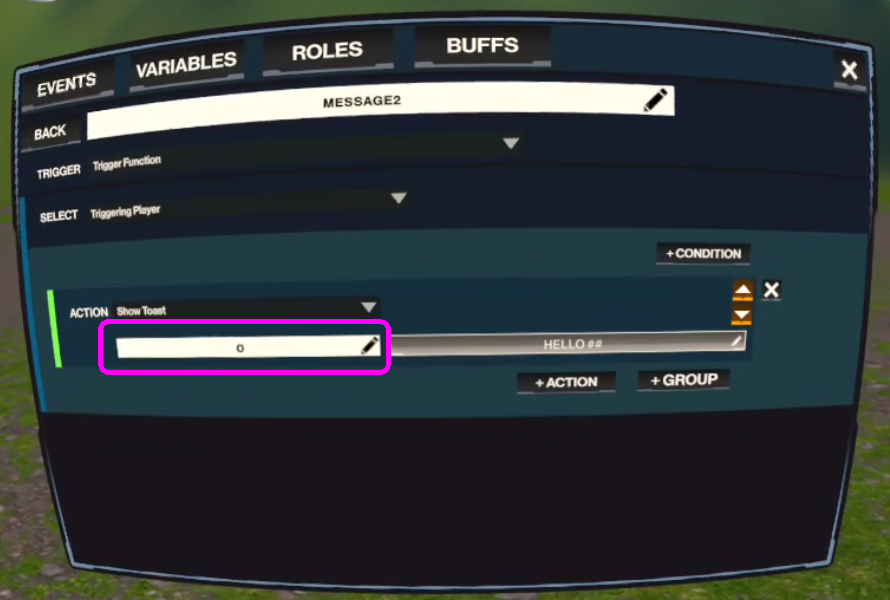

Create a second event, and set it up as follows:

  1. Trigger is TriggerFunction
  2. Name the event “MESSAGE2”
  3. Set the Action to “Show Toast”, and enter “HELLO ##”
    1. Tip: Adding the characters ## in your message allows you to display the chosen expression value in the text (we’ll set this up to be the player’s name).

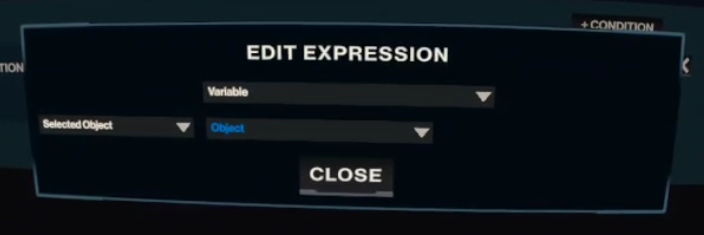

Now set the action expression to “SelectedObject.Object” to get the triggering player’s name.

  1. First click the action expression to edit the expression
  2. Then edit the expression to have Variable, Selected Object, and Object specified.

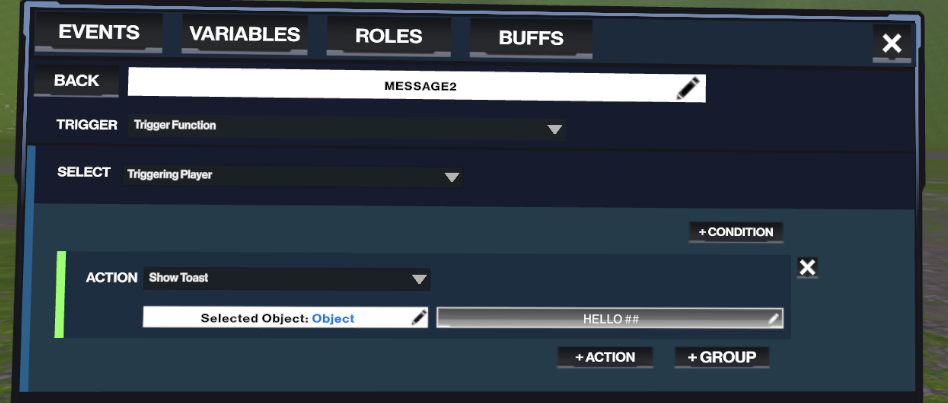

When you close the expression editor, your action should look like this:

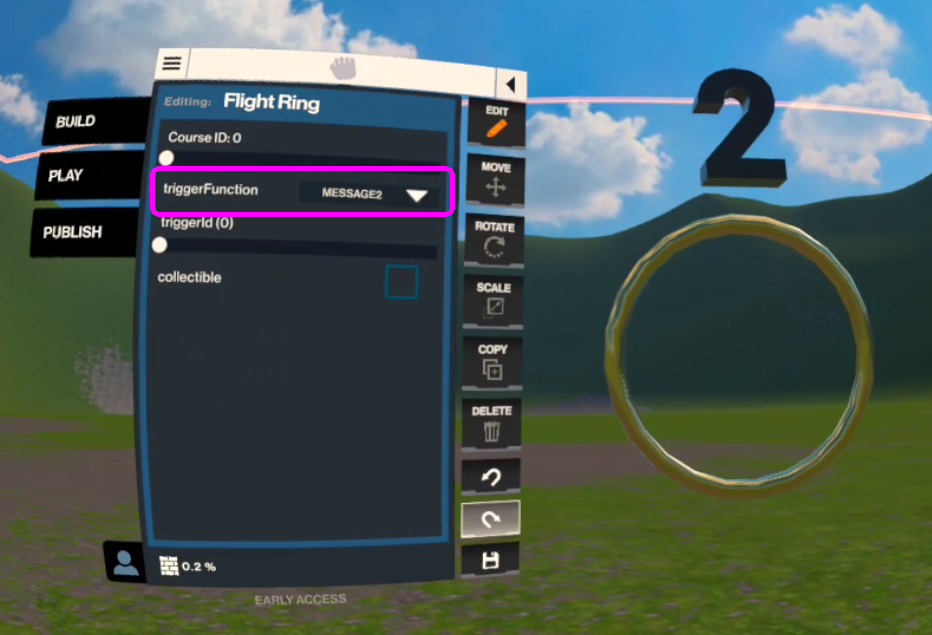

Now in the edit properties panel for flight ring 2, we can select “MESSAGE2” as the trigger function.

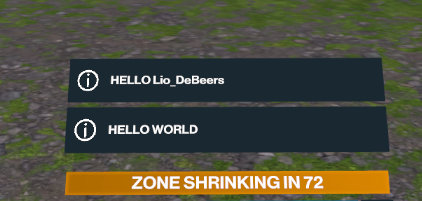

Test your game again and now when we pass through our two flight rings, we’ll get the following toasts depending on which ring you pass through!

--------------------------------------------------------

Example 2: Revenge (Intermediate)

In this example, we are going to add a new rule to the existing TDM game type.  The mechanic is that when you get killed, we will track the player that last killed you.  If you get a kill on the player who last killed you, you will get a Revenge message, and 2 points instead of the usual 1 point.



To start, either create a new TDM map with one of the template sandbox maps, or load an existing map.

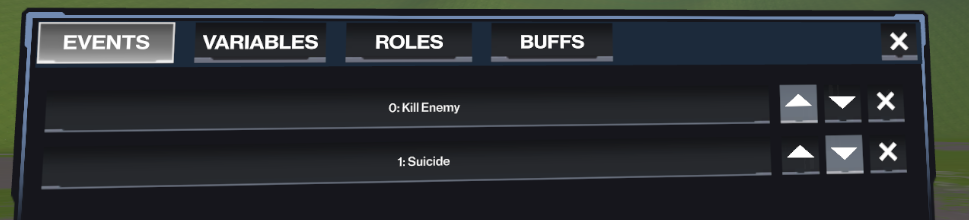

You should see these 2 events in the advanced editor if your game is using the deathmatch rules.  The first thing we need to do is add a variable to track the player who last killed a player.

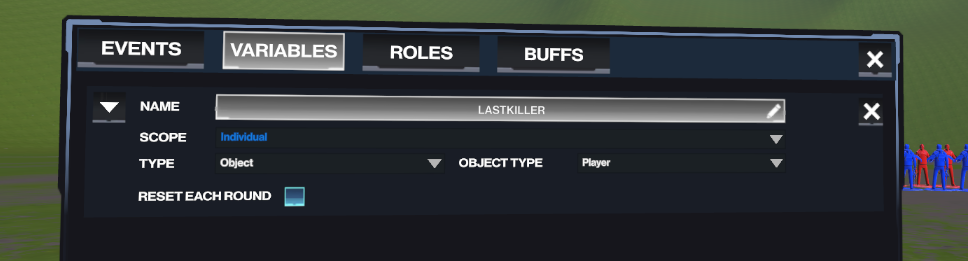

To do this, go to the Variables tab, and add a new variable.

We need to set the following:

  1. The Scope should be “Individual”, because we want each player in the game to have a copy of the variable so they can independently track their last killer.
  2. The Type should be “Object”, because it needs to contain a single in-game object.
  3. The Object Type is “Player”, because we want the variable to contain a player.
  4. Name your variable LASTKILLER or something similar to convey its purpose.

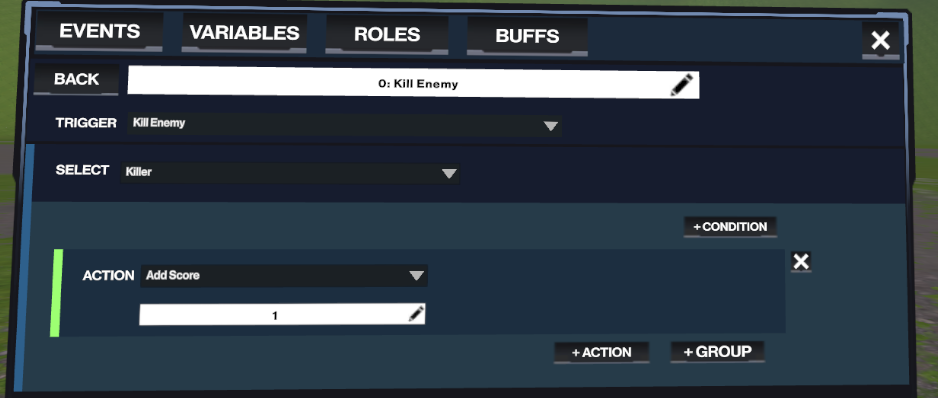

Now go back to the Events tab, and open the KillEnemy event.  By default, it looks like this

All it does is when an enemy is killed, select the Killer, and add 1 point.  We need to add a couple things to this event.

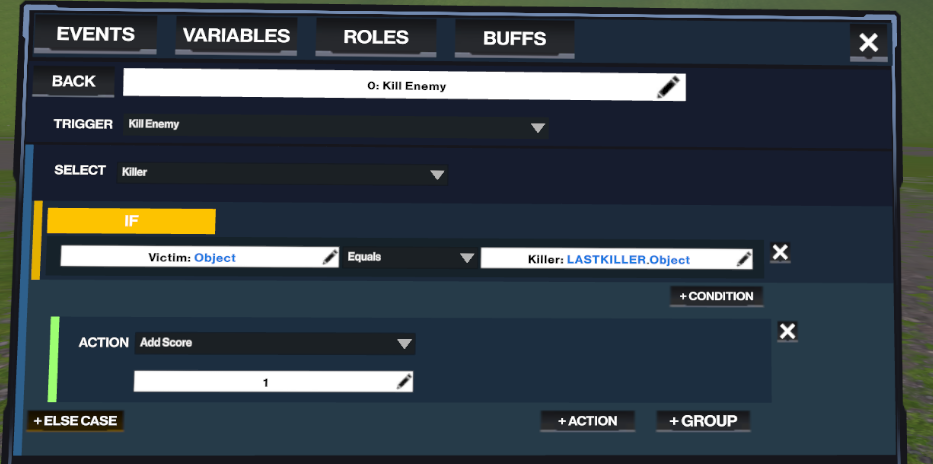

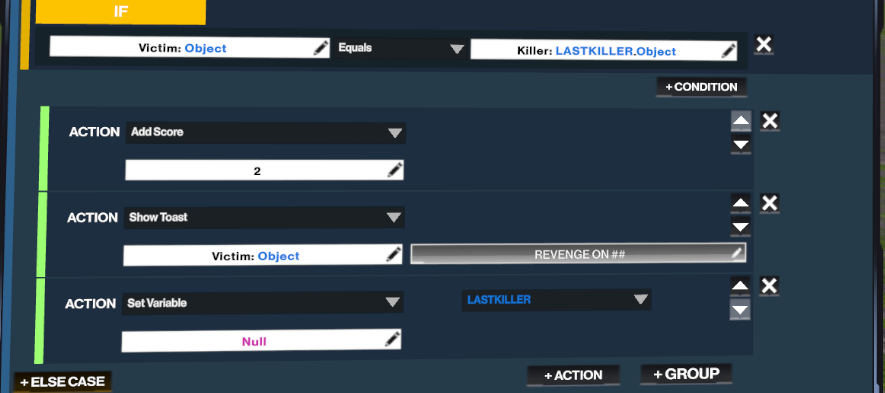

First, add a condition with the +Condition button, to check if the victim is the killer’s LastKiller. It will look like this:

Then:

  1. Change our Action to add 2 points instead of 1.
  2. Click “+ Action” and set the new Action to “Show Toast” to show a revenge message.
  3. Click “+ Action” again to clear the LASTKILLER variable, by setting it to null, which can be found under Global variables in the expression editor.  This will prevent you from getting revenge multiple times.  It is important to know that the SetVariable action is setting the selected object’s instance of the variable for variables with an Individual scope.

Next, we want an else case to add 1 point in the case that you kill any other player.

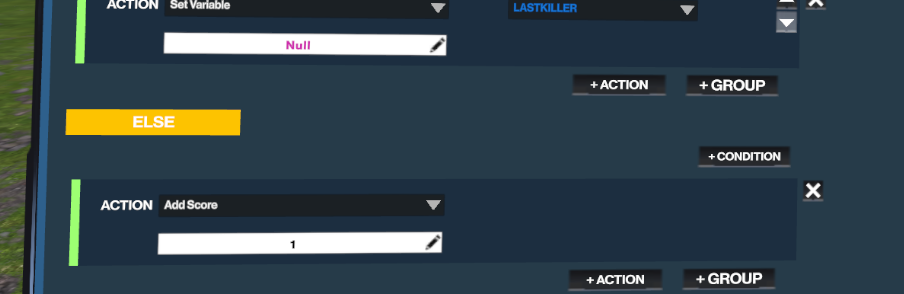

Use the +ELSE CASE button, and add an action as follows:

Now, we need to add the action to track your last killer.

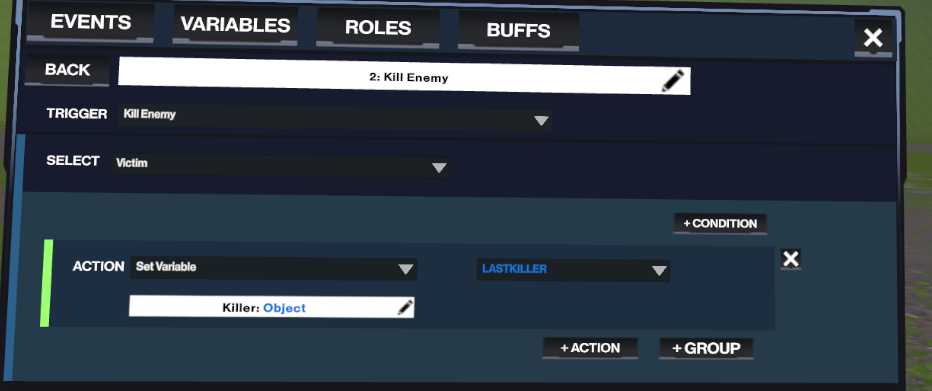

To do this, go back to the events panel, and add a new event. We want the trigger to be “KillEnemy”, but this time we want to select the Victim, as we want to set their LASTKILLER variable to track the player that kills them. That event will look like this:

One more thing we can do is set LASTKILLER to null in the suicide event, so you can’t get revenge after a self kill.

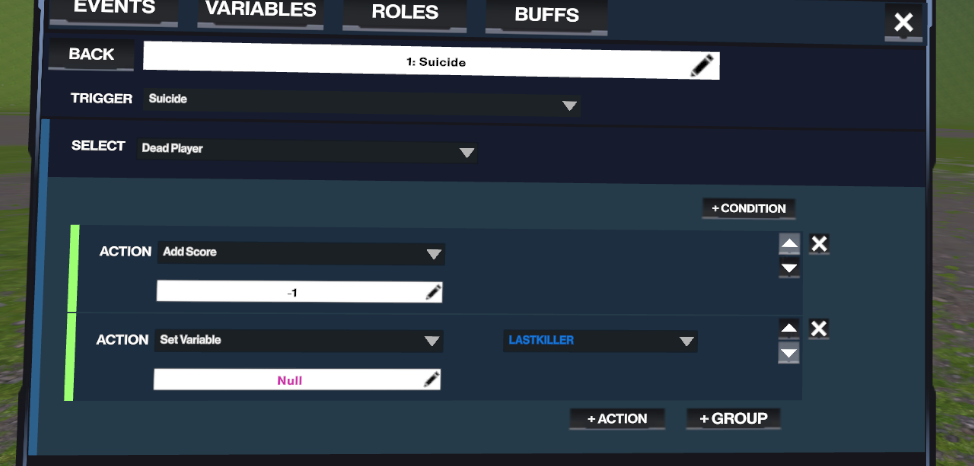

Edit the existing suicide event and add a SetVariable action and set the Dead Player’s LASTKILLER to the global value Null.



Now, go back to the sandbox panel and save your game, and on the play tab, you can spawn some bots to test your game with you.  You should see that after one kills you, you then get 2 points and a revenge toast when you respawn and kill them.

--------------------------------------------------------

Example 3: Moving Capture Point (Advanced)

The Headquarters Example map is a good place to look to understand how to manipulate control points, and use list variables.



The basics of the game mode are as follows:

  • There are a number of control points in the level.
  • One will randomly become active at a given time.
  • Once captured, the capturing team can hold the point for some time, earning points as they do.
  • Once the control point expires, or is captured by the other team, it will deactivate, and a new control point is randomly selected.

We want to make sure that almost all the control points get used before any get reused.  We will achieve this by using an object list variable to track control points that have yet to be used, and refill it when it’s down to 1 left.

This example doesn’t go step by step on how to set up this mode, but does go into detail about the events involved, and how they work.

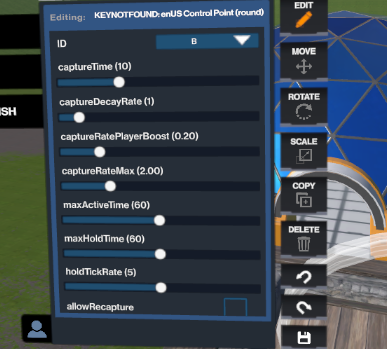

Here’s how you will want to set your control point properties for this mode.  The HoldTickRate of 5 will allow us to score for holding a control point every 5 seconds.  Turning off AllowRecapture will make the control point deactivate when it is captured a second time.  Setting the max active time and max hold time will make the control point deactivate if it isn’t captured for the selected time (max active) or once it has been held for a certain time (max held).  Be sure to give each control point a unique ID, starting with A, so they display nicely in the UI.

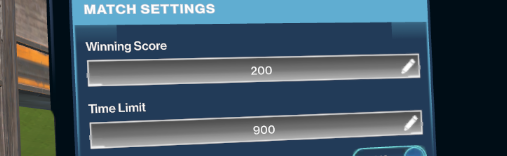

For game settings, we want a winning score, and a time limit to ensure the game ends in a reasonable amount of time.

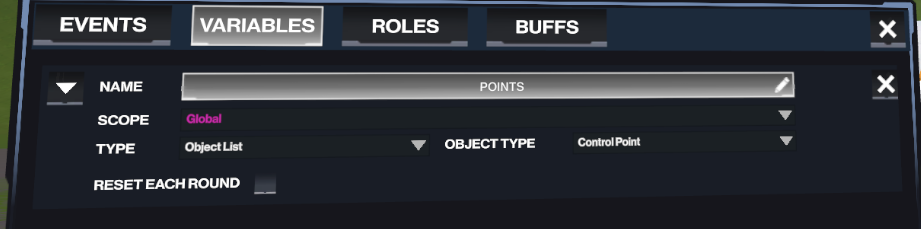

In the event editor, we want to make a global ObjectList variable of control points.  We will use this to keep track of unused control points to ensure we don’t reactivate previously used ones.

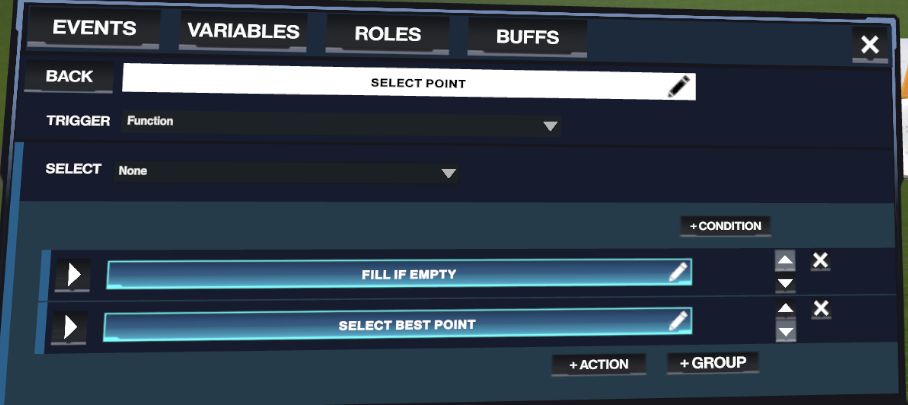

The bulk of the game logic is handled inside a global function event called SelectPoint.  This function has 2 steps.  First we want to fill the list Points if the size is less than 2.  Then we want to select the best control point in the list and activate it.  We consider the best control point a random one that doesn’t have a player within a certain distance, and if no points meet that condition, then the one with the greatest distance to the nearest player.

We use an action group for the refill list check because there are actions we want to run after this condition check, regardless of the outcome.  If we added conditions to the top level action group, then we can not place actions outside that condition check.

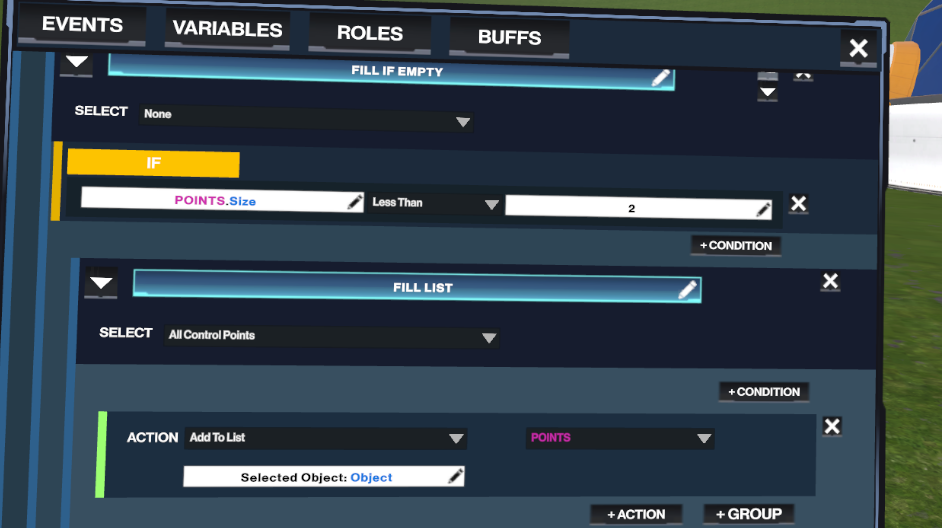

Expanding the Fill If Empty group, it looks like this:

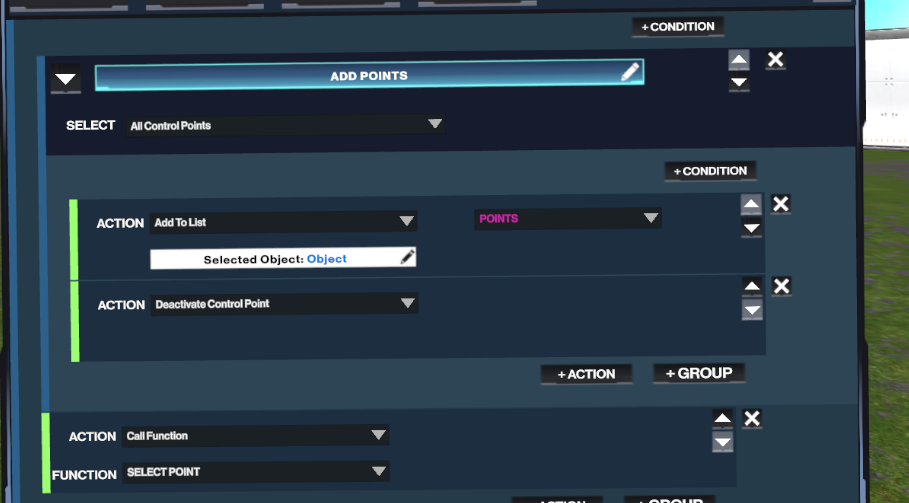

If the list is nearly empty, then we use another nested action group to select all control points and add them to the list.

We need a second action group because we want to change our selection from None to All Control Points.  If you put All Control Points in the first selection, where None is, it would run the points.Size check once for every control point, and you would only wind up adding the first 2 points to the list.

The entire action group can be collapsed to avoid clutter, and has the comment Fill If Empty to remind you what the group is doing.

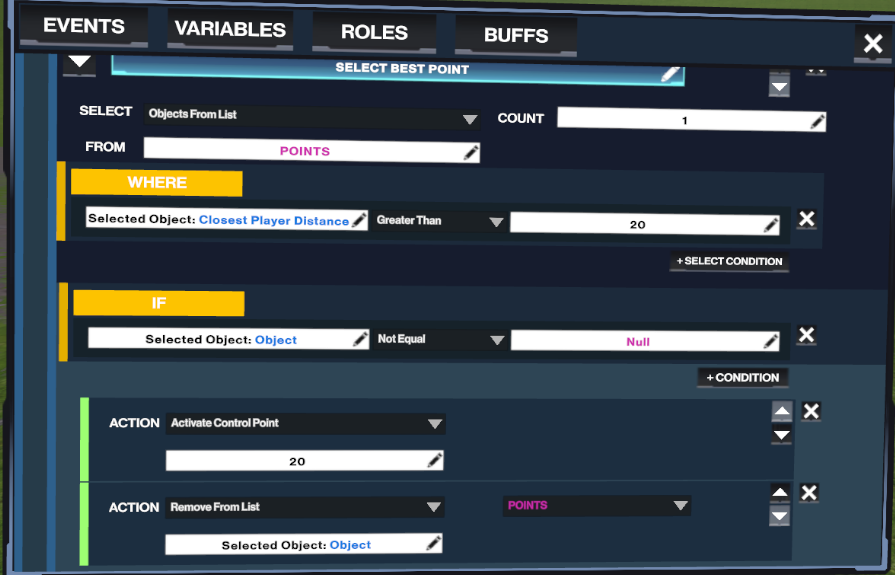

The next thing we want to do is find a control point in the list where there isn’t a player within a certain distance of the point.  To do this, we make a new ActionGroup and use the selection ObjectFromList.  Specify the count of 1, as we only want one control point, and we add a selection condition, where SelectedObject.ClosestPlayerDistance greater than 20.  What this does is look through all the control points in the list Points, find all the ones where the closest player is at least 20 meters away, and then select one of those points randomly.



Now, we need to check if we have a point selected, as it is possible that all the points in the list have a player standing within 20 meters of them.  To do this, we add a condition if SelectedObject.Object is not null.  This will be true if our selection found a valid control point, and false if not.



If we have a point, then we want to activate it with ActivateControlPoint, and remove it from the list Points, so that it won’t be selected again until the list gets refilled.  The value used in ActivateControlPoint, 20 in this case, is a delay time, so the control point will show a visible timer and be capturable in 20 seconds.

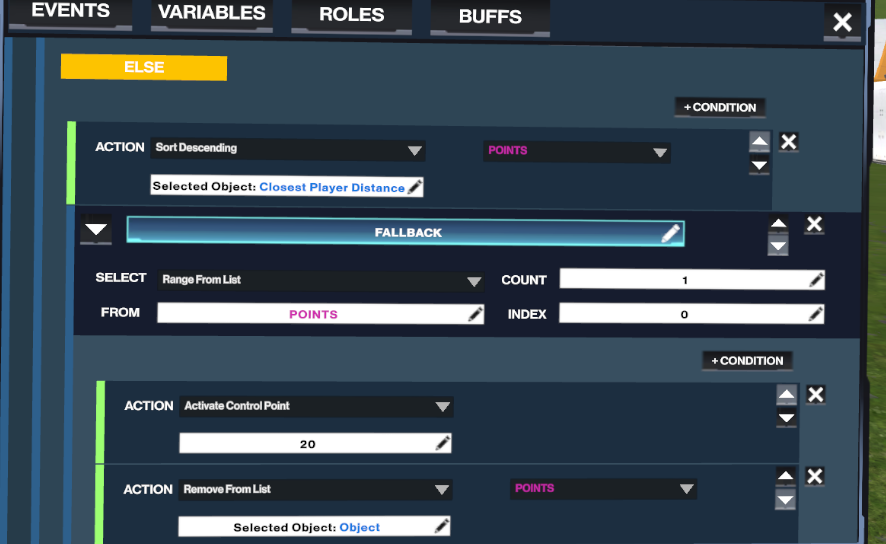

Now, we need to add an else case to handle the case where there was no selected control point above.  To do this, we are going to sort our Points list by closest player distance descending, so that the highest value is in the front of the list.  Then with a new action group, we select the first point in the list using RangeFromList with a start index of 0, and a count of 1, and then do the same ActivateControlPoint and RemoveFromList we did above.



Now, we can take care of the other events we need in our game.  On MatchSetup, we want to go through all the control points and add them to the Points list, and deactivate them, so they are not visible or capturable in the world.  Then, we want to use CallFunction to call our SelectPoint function to activate the first control point.  This is the contents of our MatchSetup event:

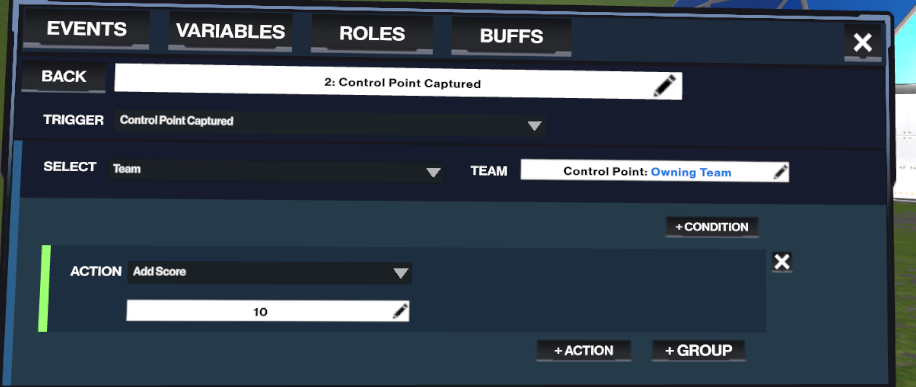

When a control point is captured, we want to give the owning team some points.  We do this with a ControlPointCaptured event, select the owning team, and use AddScore to give them 10 points.

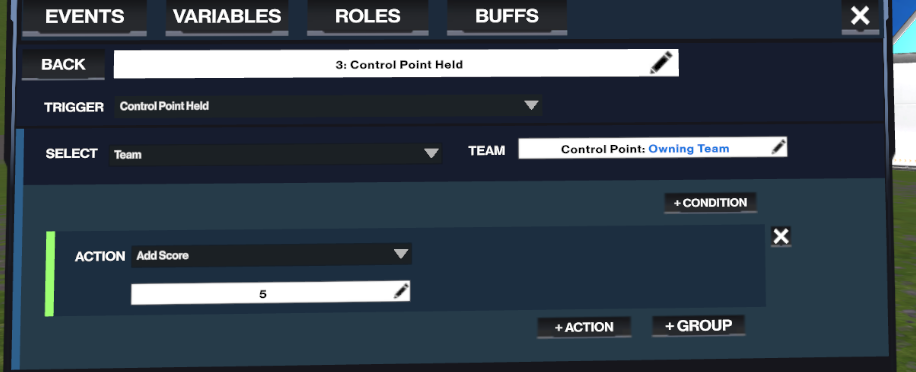

Similarly, while a control point is held by a team, we want them to earn 5 points each tick, which we set to every 5 seconds in the control point properties.

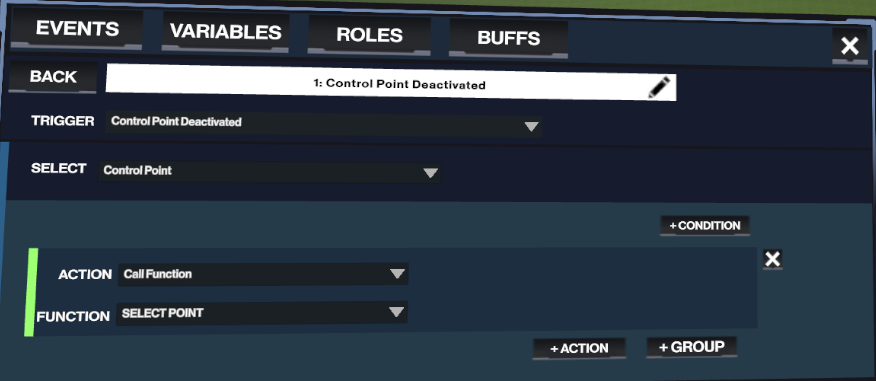

The last thing we need to do is select a new control point once one becomes inactive.  To do this, we use a ControlPointDeactivated event, and simply call our SelectPoint function.  ControlPointDeactivated will get called whenever a control point turns off due to having a maxHoldTime or maxActiveTime set.

--------------------------------------------------------

Tips and Tricks

Score, Time and Rounds:  It is important to understand how Population One treats these concepts.

  • In general, if your game has a winning score set to a non zero value, then when a team achieves that score, they will win the game.
  • If you set the game to be a multi round game, via the toggle in the advanced section of the custom rules panel, then on achieving a winning score, the team will win the round, and the round and scores will reset.
  • Once a team has won the required number of rounds, they will win the game.  When time expires, the team with a higher score will be declared the round or game winner.
  • By default, the score hud will show if your game has a winning score set, but you can toggle that off in the advanced section of the custom rules panel.  This can be useful in a game like 5CP, where you need to capture all the control points to win, and if time expires, the team with more control points owned is the winner, but you don’t want a scoreboard, as the control point hud is already shown.  You can take advantage of the built in game structure by setting the winning score to 5, hiding the scoreboard, and in OnControlpointCaptured, setting each team’s score to the number of points they control.

--------------------------------------------------------

Appendix

Triggers

These are the currently supported event triggers.

  • KillEnemy:  Fires when a player kills a member of another team.  Properties:  Killer - the player who got the kill.  Victim - the player who was killed.  WeaponUsed - Event variable containing the weapon used in the kill.  Location is where the kill happened.
  • Suicide: Fires when a player kills themselves, or is killed by the battle zone.  Properties: Victim is the dead player.  Location is where the kill happened.
  • PlayerDies:  Fires any time a player dies for any reason.  Properties: Victim is the dead player.  Location is where they died.
  • MatchSetup:  Fires at the start of a game, before players are moved to the spawn points.  This allows you to adjust teams/roles before players spawn.
  • RoundStart:  Fires after MatchSetup, but before the players move to spawn points.  This also fires at the start of each round if your game features multiple rounds.
  • RoundReset:  This fires at the end of a round in a multi round game, before RoundStart gets called.  It is not run before the first round.
  • EliminationComplete:  This trigger will fire when there is only one team alive in the game.  Properties:  SurvivingTeam - Event variable showing the team left alive, which you can use to set the round or game winner if you are making an elimination style game.
  • TimeExpired:  If your game has a time limit set, this event fires when time runs out.
  • CollectItem:  Triggered when a player picks up a loot item in the world.  Properties: Collecting Player is the player who grabbed the item, the location is where the item was grabbed, and there is an event variable of what item type they grabbed.
  • CollectCollectible:  Triggered when a player picks up a collectible item in the world.  Properties: Same as CollectItem, but the event variable is from the list of collectible item types (crystals, pumpkins, balloons…)
  • DeliverItem:  Triggered when a player delivers an item to a delivery point object.  Properties: Delivering Player is the player who deposited the item.  Location is the weapon dispenser location on the delivery point, in case you wanted to do something like spawn a weapon there…
  • FlightRingTriggered: Called when a player passes through a flight ring.  Properties: TriggeringPlayer is the player who activated the flight ring.  Location is the flight ring position.  There is an event variable of trigger ID, which you can set on the flight ring object in the edit tab so you can do different things based on which ring is triggered.
  • VariableChanged:  Allows you to watch a player or team variable, and do something when it changes.  Properties: VariableOwner is the player who owns the variable if this is a player variable.  For team variables, there will be no VariableOwner set, but the team id is available as an event variable.
  • GlobalVariableChanged:  Allows you to watch a global variable.  There is no player or team available here.
  • SuddenDeathEnd:  If you don’t want your game to ever end in a draw, you can call StartSuddenDeath when time expires, and then this event will fire when the scores are no longer tied, and you can end the match.  The event variable Team will contain the team ID who is now winning.
  • Timer: This trigger lets you define an event that will run periodically.  You can enter the frequency (in seconds) next to the dropdown where you select the trigger.
  • PlayerJoin: Called when a player joins your game in progress.  Properties: JoiningPlayer  is the player who joined.  In certain game types, you may need to assign the new player a role/team when they join after the match has started.
  • PlayerLeave:  Called when a player leaves your game while it is in progress.  Properties: LeavingPlayer is the leaving player.  If your game has a special player, such as someone who is “It” in a tag game, and they leave, you may need to assign that role to a new player.
  • PlayerRevived: Called when a player is revived.  Properties: RevivingPlayer is the player performing the revive.  RevivedPlayer is the player who was revived.
  • PlayerFunction:  This allows you to define a reusable block of actions that you can call from multiple places with the CallPlayerFunction action.  Properties: Player is the player you had selected when calling the function.
  • TeamFunction:  This allows you to define a reusable block of actions for a team.  Properties: SelectedTeam is available in the event variables.
  • GlobalFunction:  This allows you to define a reusable block of actions with no player or team selected, which can be called with the CallGlobalFunction action.
  • ControlPointCaptured:  Triggered when a control point becomes controlled by a new team.  Properties: ControlPoint  is the control point that was captured.
  • ControlPointHeld: Triggered periodically for each control point that is owned by a team.  You can set the frequency of the call with the HoldTickRate property on the control point.  If set to 0, this trigger will not be called.
  • ControlPointDeactivated:  Control points have many properties in their edit tab.  If you set an activate time limit, or a control time limit, then the point will turn itself off when those timers expire, and this event will be triggered.  This can be used if you want to move the active control point around periodically.  Properties: ControlPoint is the point that was deactivated.

Selection

These are the currently supported selection options.

  • SelectedObject:  This refers to the currently selected object.  In a nested action group, it will be the object selected in the parent action group.
  • SourceObject:  The source object defined by the trigger for the event.  The name will be changed based on the trigger to provide clarity on what object it is referring to.
  • TargetObject:  The target object defined by the trigger for the event.  This name is also updated to provide clarity based on the trigger.
  • None:  Select no object or team.
  • AllPlayers:  Run this action block for every player in the game in a loop.
  • RandomPlayer: Allows you to specify a number of random players to select, and runs the action block on each one.  There is also a condition block inside of this selection, which lets you define conditions you want the randomly selected players to satisfy in order to be selected.
  • SelectedTeamPlayers: Run this action block on every player on the currently selected team.
  • SourceTeamPlayers:  Run the action block on every player on the source player’s team.  Only available if the trigger had a source player.
  • TargetTeamPlayers: Run the action block on every player on the target player’s team.  Only available if the trigger had a target player.
  • TeamPlayers:  Allows you to specify a team, and run the action block on each player on that team.
  • AllTeams:  Runs the action block one time for each team in the game (not players, just once per team).
  • Team: Allows you to select a team ID and run the action block for that team.
  • SourceTeam: Available in some triggers such as TeamFunction.  This is the team used to trigger the event.
  • AllControlPoints:  Run this action block for every control point in the level.
  • ObjectsFromList: This allows you to select a number of objects in a list.  Similar to RandomPlayer, you can specify the number you want to select, and any conditions you want to require for your selection.  The action block is then run for each object selected.
  • RangeFromList: This allows you to specify the starting index and the number of items to pull from an object list, and run an action block for each of those items.
  • AllFromList: This runs the action block for each item in a list variable.
  • ObjectFromVariable:  This lets you run an action block on an object stored in an object variable.

Actions

These are the available actions you can perform in your events.

  • AddScore: Allows you to specify a number of points (including negative values), to be added to the currently selected team and player’s score.
  • SetScore: Allows you to directly set the score value of a selected team and player.
  • SpawnLoot:  Allows you to specify a specific loot item to spawn at the event triggering location.
  • SpawnLootWithRarity:  Allows you to spawn a specific weapon, with a specified rarity at the event triggering location.
  • SpawnLootInOrder:  Spawns an item from a list of items, with a given index.
  • SetWeaponByValue:  Probably only useful for GunGame style games, this allows you to set a player’s weapon to an item from a list by a specified value.
  • AddVariable:  Add a value to a variable.
  • SetVariable Set the value of a variable.
  • SetWinningTeam:  End the match, and declare a specified team the winner.
  • EndRound:  End a game round, and declare the specified team the winner.  For a round with no winner, pass in -1 for the team.  This action will reset the game state, and move players back to spawn points.
  • EndMatch: Force the match to end.  If your game uses scores, the team with the higher score will win.  If there is no winner from score, the game will be a draw.
  • StartSuddenDeath:  This will force the game to end when the next team scores, with that team winning.
  • RotateTeams:  This will cause all teams to rotate spawn points to the next team’s points.  Use this between rounds in a multi round game, when calling EndRound, if you want to swap sides.  This will also change the teams associated with certain in-world objects, so items like Flag Spawners and Delivery Points that have a team associated with them will rotate their teams, just like the spawn points.
  • SetSpawnArea: Spawn points can be given an area ID, that is not the default value of 0.  If so, those points will not be used until you call SetSpawnArea to set the area to use for the selected team.  This is useful for games where the spawn points want to move forward as a team makes progress capturing points.
  • SetTeam:  Sets the currently selected player to a specified team.
  • SetRole:  Sets the currently selected player to a specified role.
  • DamagePlayer:  Does a specified amount of damage to the currently selected player.
  • CallPlayerFunction: Triggers a PlayerFunction type event with the currently selected player as the source object for that event.
  • CallTeamFunction:  Triggers a TeamFunction type event with the currently selected team ID selected.
  • CallFunction:  Triggers a GlobalFunction type event with nothing selected.
  • AddToList:  Adds the currently selected item to a list variable of the appropriate object type.
  • RemoveFromList:  Remove the currently selected item from a list variable.
  • ClearList:  Remove all contents from a list variable.
  • SortListAscending:  Sort a list by a specified property of the list members, from low to high.
  • SortListDescending:  Sort a list by a specified property of the list members from high to low.
  • ActivateControlPoint:  Makes a selected control point active and visible in game.  You must call this for every control point you want to be usable in your game (in a loop of all control points on match setup for example).  The parameter is the number of seconds to delay the control points being capturable.
  • DeactivateControlPoint:  Make the selected controlpoint inactive, and hidden.
  • LockControlPoint:  Make the selected control point locked.  It remains visible, but can not be captured.
  • UnlockControlPoint:  Make the selected control point unlocked, so it can be captured.
  • SetControlPointOwner:  Make the selected control point owned by a specified team.  You may want to do this on match setup for games where one team is defending points against the other.
  • SetRoundTime:  Allows you to override the time that the round will last.  Call this in a RoundReset event to affect the next round.
  • SpawnCollectibleItems: Collectible loot items placed in the level do not spawn by default.  If you want to use collectibles in your game, call this and specify the number to spawn, and the game will spawn them distributed evenly and randomly across the collectible loot points you have laid out.
  • Break:  This will end execution of a timer event.
  • Yield:  Pauses execution of the current action group for a specified number of seconds.
  • EnableFields:  Field items (force fields and kill zones) can have a field ID specified on them.  This action will turn on any fields with the specified ID.
  • DisableFields:  This will disable fields with the specified ID.
  • ToggleFields:  This will toggle the on/off state of any field objects with the specified ID.
  • ApplyBuff:  This action will add the specified buff to the currently selected player.  See the Buffs section below for more information.
  • ShowToast: This action will force a toast popup for the currently selected player.  You can enter a message to display, and if you would like to insert a value in your message, the value you select in the action will replace ## in your message.  If your value is an object, such as a player, then their name is inserted into the message.
  • DebugToast:  Same as show toast, but this only runs while your game is being played in the sandbox editor.
  • UpdateMessage:  The message board item can be placed in the level to display game information.  Preface your message with the ID of the message board you would like to update, if you are using multiple IDs.  For example the message 2 ## Kills remaining would update message board ID 2 with the message of the number of kills remaining to win, if your action expression evaluated to the number of kills remaining to win.

Buff Types

These are the buff types available in the editor.

  • Health Regeneration: Adds the value to the player health every second for the duration of the buff, up to maximum health
  • Shield Regeneration: Adds the value to the player shield every second for the duration of the buff, up to maximum shield
  • Damage Scale: Multiplies all damage dealt by the player by the value while the buff is active
  • Movement Speed: Multiplies the player movement speed (both walking and gliding) by the value while the buff is active
  • Fling Power: Multiplies the strength of flinging when climbing by the value while the buff is active
  • Gravity Scale: Multiplies the strength of the force of gravity on this player by the value while the buff is active
  • Fire Rate: Multiplies the rate of fire of any gun held by the player by the value while the buff is active
  • Magazine Size: Multiplies the size of the magazine of any gun held by the player by the value while the buff is active. The increased magazine size is retained until the excess bullets are fired or ejected or the gun is dropped, even if the buff expires.
  • Armor Piercing: The damage dealt by this player is multiplied by the value while the buff is active. The resultant damage amount is dealt directly to health, ignoring the enemy’s shields. The remaining proportion of the damage is dealt as ordinary damage.
  • Headshot Damage: The damage dealt when the player shoots an enemy in the head is multiplied by the value while the buff is active
  • Silence: The affected player’s footstep and gliding audio is muted for all players while the buff is active. The value has no effect on this buff.
  • Health Steal: The damage dealt by the player is multiplied by the value while the buff is active, and the resultant amount is added to the player’s health, or shields once their health is full.
  • Healing Bullets: When this player shoots their teammates while the buff is active, the damage that would be dealt is multiplied by the value and added to the impacted teammates’ health instead, or their shields once their health is full.
Powered by Zendesk
